A carbon neutral solution for desalination? Maybe so by tapping into geothermal

Indianapolis, IN, USA: Water shortages are hitting some areas of the world hard, and with increasing global temperatures, more regions may be experiencing drought conditions.

Countries such as Saudi Arabia rely on desalination plants to provide drinking water to their residents, producing 5 million cubic meters of desalinated water per day. The method requires a high amount of energy, which can limit the use of the process in many parts of the world.

Researchers have been working on using renewable energy sources such as solar and wind to power desalination plants, and reduce the need for traditional, fossil fuel-powered methods. Now, new research presents an untapped resource for powering desalination: geothermal energy.

“We’re searching the world right now for better methods, low carbon methods, to create energy,” says Thomas Missimer of Florida Gulf Coast University. “We want electricity that’s generated at base load—in other words, generated 24 hours a day without interruption. Geothermal is one of those types of energies.”

Missimer says geothermal provides energy in two ways: wet rock and dry rock. Wet areas, like Iceland, use the hot water from deep in the earth to provide the energy to move turbines and produce energy. But this type of geothermal heat is rare.

On the other hand, dry rock geothermal potential is more wide-spread globally. Missimer suggests using these areas—regions like southern California, North Africa, and the Red Sea region—to heat water that can be used to produce energy.

Dry rock geothermal methods are currently being used in parts of the world for energy production, but Missimer says that the heat can be used in more efficient ways, especially with desalination. Details of the new research constructing a “geothermal energy-water campus” will be presented on Monday at the 2018 Geological Society of America Annual Meeting in Indianapolis, Indiana.

Usually, geothermally-heated water from the ground is converted to steam, that steam powers a turbine to create electricity, then the heated water is vented to the atmosphere while it’s still hot—still over 100 degrees Celcius in most cases. Instead of venting, the team wants to use that hot steam in their desalination processes.

The first desalination process is multiple effect distillation (MED), which requires hot water (above 100 degrees Celsius), but the second process, adsorption desalination (AD), can be run on cooler water, says Missimer. As the steam moves through the system and cools, it is still effective for powering desalination. “Now you have an efficient system where you have conserved the latent heat that you’ve captured in the ground through three processes: turbine electricity generation, MED and AD.”

At the end of the desalination process, Missimer says that distilled water and chilled water (from the AD process) are the final products. While the distilled water can be consumed, even the chilled water is reused—the cool water can be recycled through the plant to help with air conditioning.

Lastly, the researchers propose to store excess water in aquifers for later use, which Missimer says is a future energy saver. “By storing some of that excess water, you can use that water seasonally when more water is required and sort of even out the changes in demand to the system.”

The benefits of a system like this are broad: there is no carbon dioxide being produced at the plant, as it is all self-contained and powered by geothermal energy, rather than fossil fuels. It also has an economic benefit. “If you look at the benefit to the place like Saudi Arabia, saving 6 million barrels of oil a day, at $100 a barrel— that’s a bloody fortune,” says Missimer.

Missimer says it is even more effective than a solar-powered plant, because it can be run 24 hours a day, compared to just daylight hours. He adds that the benefits really come with the efficiency of operation. “In a facility like this, if it’s run properly, you’re not consuming a resource,” says Missimer, adding that the heat keeps flowing and is renewable.

For now, the idea is theoretical and hasn’t been put into practice. But Missimer adds that the individual parts of the plant and the technology have been around for a while—it just hasn’t been combined all together into one plant. “We’ve learned that sometimes you don’t need new technology to make advances,” he says. “Sometimes it’s piecing together old technology in a constructive way to provide more efficient operation.” He and his colleagues are hoping to put their carbon-neutral desalination ideas into practice in the near future.


Thomas M. Missimer, PhD
Visiting Professor
Eminent Scholar, Hydrogeology and Water Resources
U. A. Whitaker College of Engineering
Emergent Technology Institute
Florida Gulf Coast University
16301 Innovation Lane
Rm. 112B
Fort Myers, FL 33913
Email: tmissimer@fgcu.edu
Tel.: +239-810-3009

Abstract: https://gsa.confex.com/gsa/2018AM/webprogram/Paper320494.html
Time: Monday, 5 Nov., 10:25 a.m.
Session: T13. Global Warning: Accelerating Rates of Change Forewarn of Catastrophic Impacts I

The Geological Society of America, founded in 1888, is a scientific society with members from academia, government, and industry in more than 100 countries. Through its meetings, publications, and programs, GSA enhances the professional growth of its members and promotes the geosciences in the service of humankind. Headquartered in Boulder, Colorado, GSA encourages cooperative research among earth, life, planetary, and social scientists, fosters public dialogue on geoscience issues, and supports all levels of earth-science education.

# # #

For Immediate Release
3 Nov. 2018
GSA Release No. 18-38


Christa Stratton

Contributed by Sarah Derouin

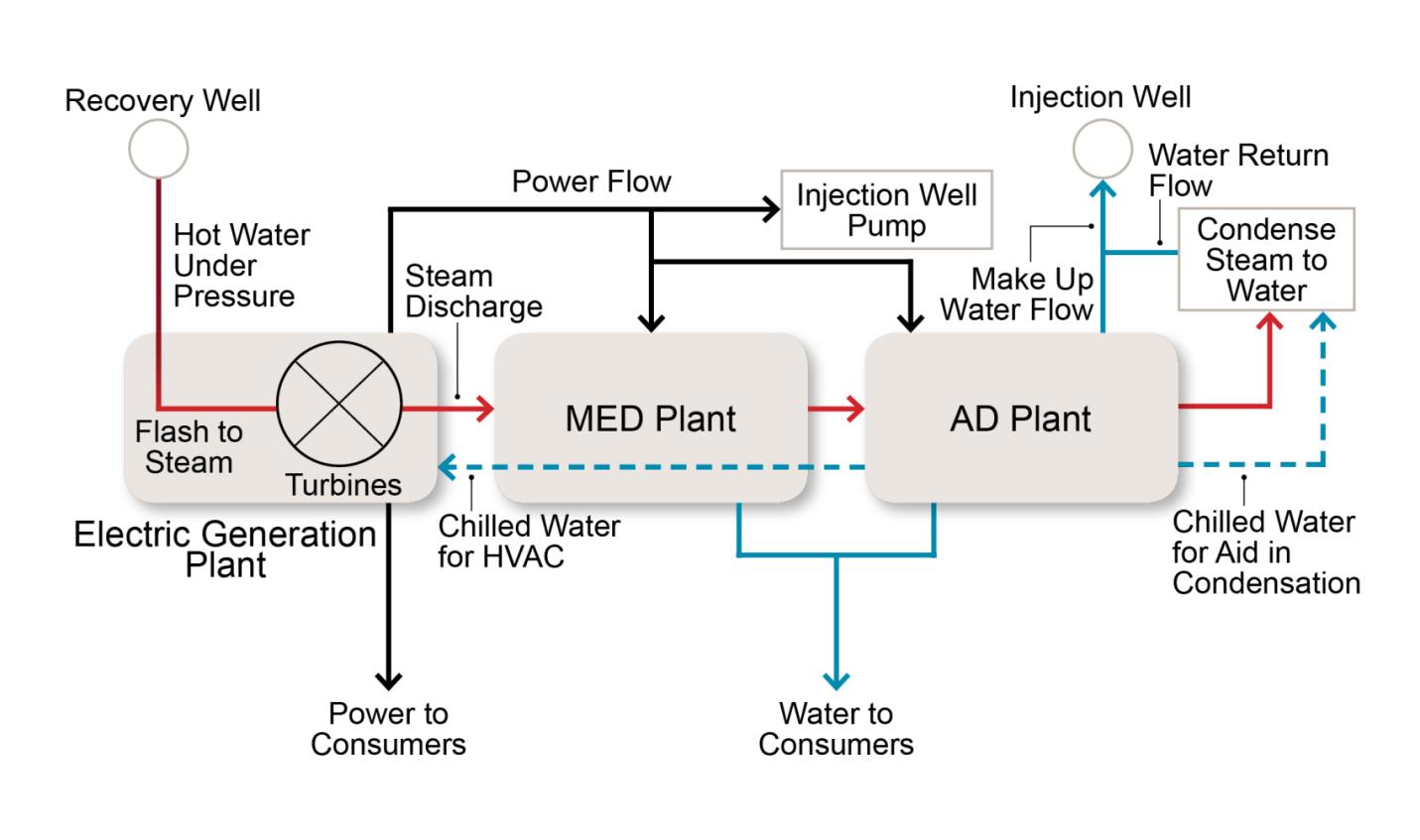

geothermal diagram
Diagram of how the geothermal energy would be used for energy production, and two types of desalination (MED and AD). Red lines indicate hot water, while blue lines are cooled water. At the end of the process, distilled water would be available for consumers and aquifer storage, and the chilled water could be used in air conditioning for the plant. The whole theoretical system is carbon-neutral. Credit: Courtesy of Thomas Missimer. Click on the image for a larger version.
