New GSA Bulletin Study of the 2014 Oso Landslide

Boulder, Colo., USA: As a compelling example of a large-mobility landslide, the 22 March 2014 landslide near Oso, Washington, USA, was particularly devastating, traveling across a 1-km-plus-wide river valley, killing 43 people, destroying dozens of homes, and temporarily closing a well-traveled highway.

To resolve causes for the landslide’s behavior and mobility, Brian Collins and Mark Reid of the U.S. Geological Survey conducted detailed post-event field investigations and material testing of soils involved in the failure.

How far a landslide moves from the site where it began can, of course, vastly amplify the consequences of slope failure. Some landslides stop moving close to where they began, and others are very mobile and can travel long distances, affecting not only what is located at the base of the slope, but also farther away.

Collins and Reid mapped the geology and structure of the Oso landslide deposit by making multiple visits to the site over the course of three years. Some of the data they collected were highly ephemeral, being obscured by erosion and vegetation within one year of the landslide and highlighting the need to record many observations within a few months of the disaster.

Using “boots-on-the-ground” geologic mapping techniques, combined with high-resolution orthoimagery and airborne LiDAR data, they reconstructed the likely sequence of events that led to the landslide’s large mobility. Their mapping and analyses show that the approximately nine-million-cubic-meter landslide underwent rapid extension or stretching in a closely timed sequence of events that led to the landslide overrunning the, at-the-time, saturated flood plain forming the valley floor.

The large and rapid failure of the landslide caused the flood plain, composed of alluvial sands and gravels, to liquefy through a process of pore-pressure generation and consequent liquefaction. Liquefaction greatly reduced the strength along the base of the landslide and enabled it to travel over 1 km across the valley flats.

Collins and Reid found extensive evidence of high soil-water pore pressure during their field work by identifying and mapping of hundreds of “sand boils”—typically decimeter-sized cones of sand that indicated locations where liquefied alluvium tried to escape from a weakened base beneath the landslide. In their new GSA Bulletin article, Collins and Reid present their mapping and interpreted landslide sequence, as well as analyses that show how the basal liquefaction mechanism likely occurred at the site of the Oso landslide. They hypothesize that this mechanism might enhance mobility of other landslides in similar settings.

FEATURED ARTICLE
Enhanced landslide mobility by basal liquefaction: The 2014 SR530 (Oso), Washington, landslide
Brian Collins (bcollins@usgs.gov), Mark Reid, U.S. Geological Survey, Landslide Hazards Program, Menlo Park, California. URL: https://pubs.geoscienceworld.org/gsa/gsabulletin/article/571833/enhanced-landslide-mobility-by-basal-liquefaction.

GSA BULLETIN articles published ahead of print are online at http://bulletin.geoscienceworld.org/content/early/recent. Representatives of the media may obtain complimentary copies of articles by contacting Kea Giles. Please discuss articles of interest with the authors before publishing stories on their work, and please make reference to The Geological Society of America Bulletin in articles published. Non-media requests for articles may be directed to GSA Sales and Service, gsaservice@geosociety.org.

http://www.geosociety.org

# # #

For Immediate Release
26 June 2019
GSA Release No. 19-23

Share this page

Contact:
Kea Giles
+1-303-357-1057

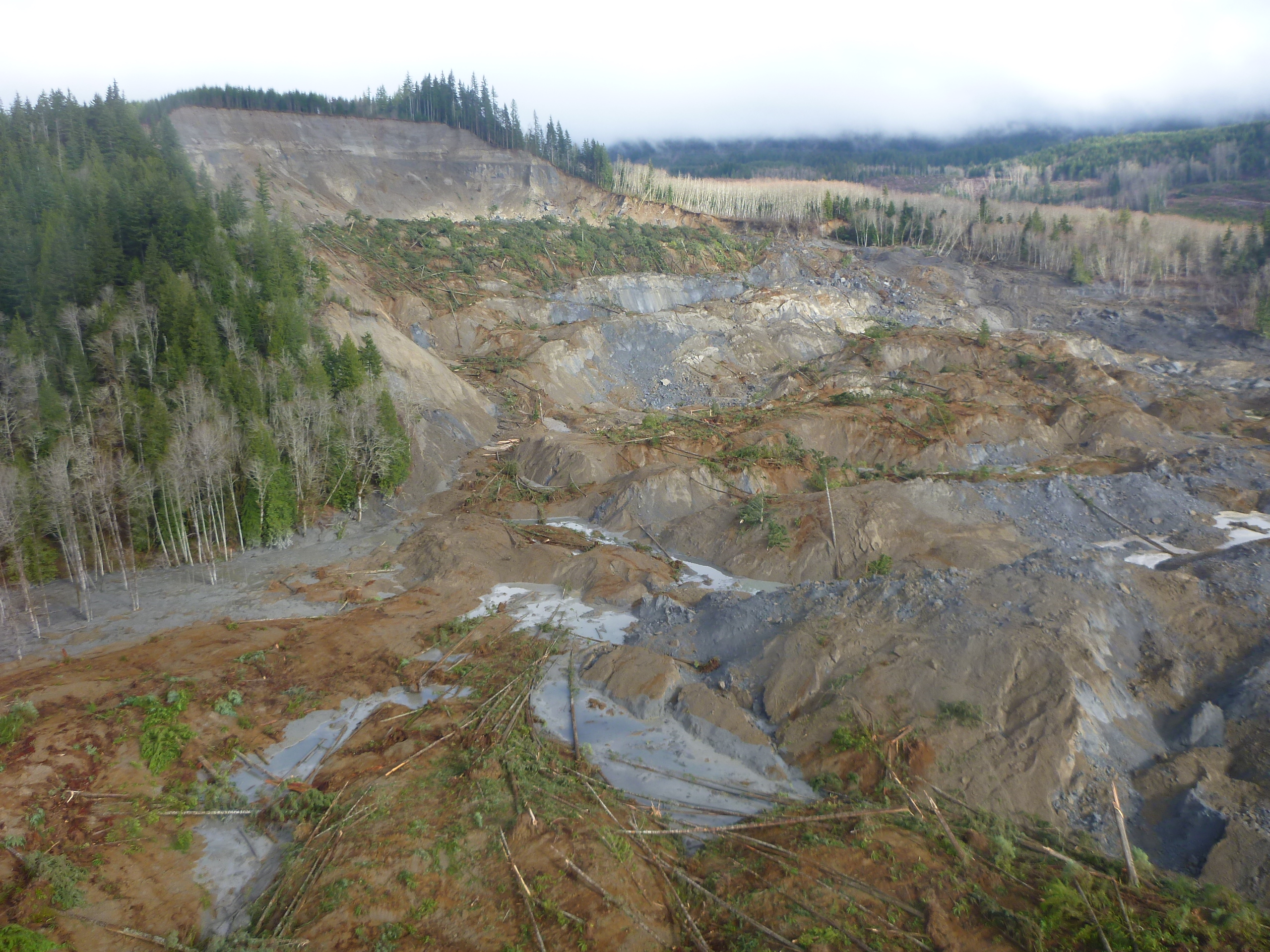

The 22 March 2014 SR530 landslide near Oso, Washington, caused 43 fatalities, destroyed a neighborhood, blocked a state highway, and temporarily dammed the North Fork Stillaguamish River. This photo was taken the day after the catastrophic slide, before the river cut through the landslide deposit. Here, several geomorphological components of the landslide are visible, with a hummock field in the foreground transitioning upslope to larger slices of deposit separated by multiple scarps, which then transition to a fallen-tree covered, back-rotated block downdropped from the headscarp in the far field. Nearly the entire landslide deposit exhibits indications of extension. Collins and Reid attribute extensional hummock formation to widespread basal liquefaction of underlying alluvial sediments in the river valley. Photo by Stephen Slaughter (Washington Geological Survey, Washington Department of Natural Resources).

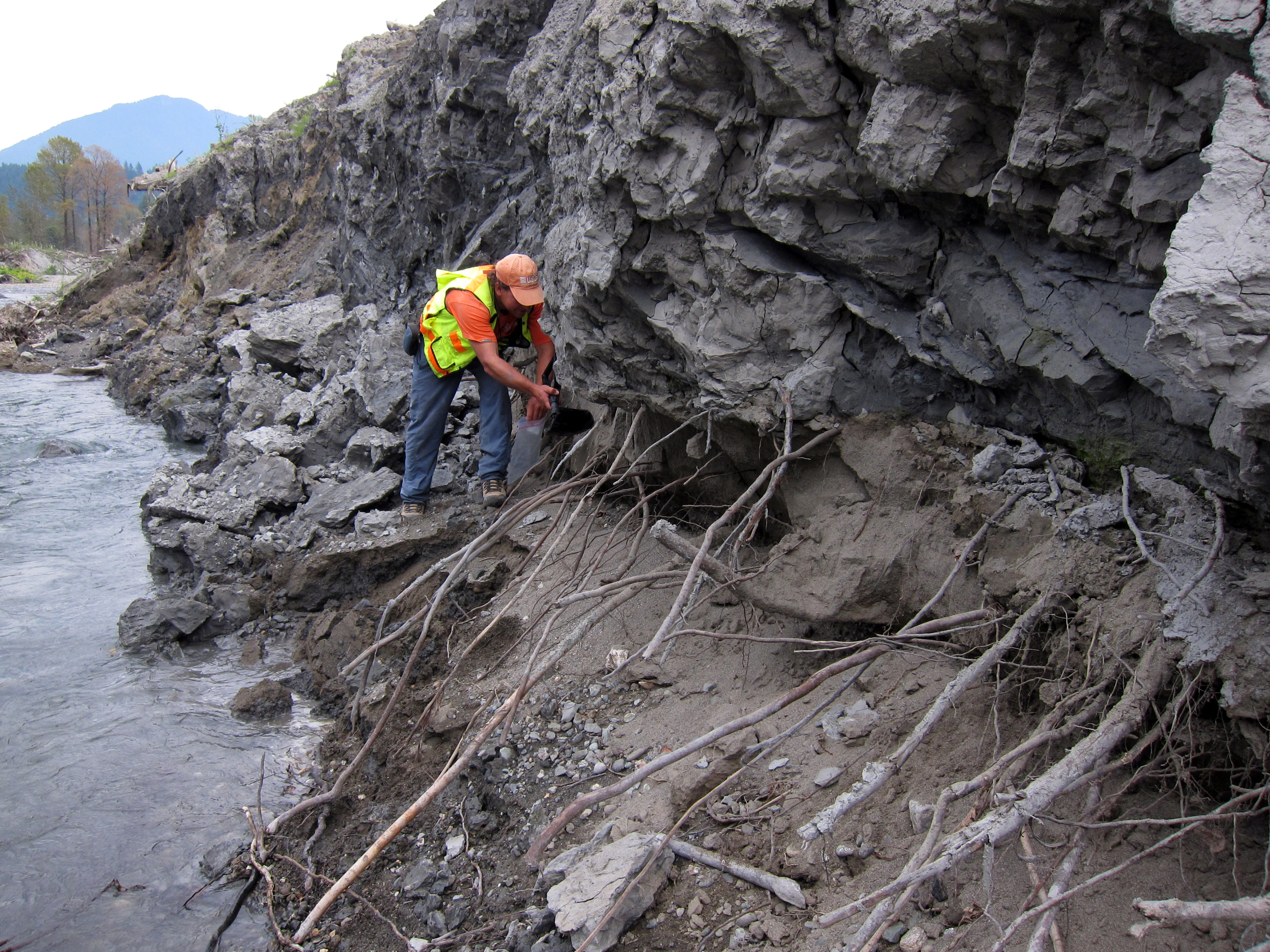

The 2014 State Route 530 (Oso) landslide in northwest Washington overran the entire North Fork Stillaguamish River valley. Here, U.S. Geological Survey civil engineer Brian Collins examines grey clay deposits overlying the brown sand that forms the underlying alluvial river valley. The clay was initially high up on the slope hundreds of meters uphill (to the left of the image) and destroyed the Steelhead Haven neighborhood where 43 people perished. The landslide was rafted across the valley by water pressures caused by liquefaction (fluidization and loss of strength) of the alluvium, and ripped trees from the ground, leaving only root pieces sticking out of the alluvium. Photo by Mark Reid (USGS).
